Tri-color alarm roller scale, roller electronic scale

Product Video

null

Product Parameters

Three-color alarm roller scale parameters:

1, range:

30 kg, 60 kg, 100 kg, 150 kg, 200 kg, 260 kg, 300 kg, 500 kg, 600 kg, 800 kg;

2, the table size:

300 * 400; 400 * 500; 500 * 600; 600 * 800; 800 * thousand mm;

3, the amount of error:

1G, 2G, 5G, 10G, 20G, 50G, 100G, 200G 500g kg;

4, material:

Square tube and stainless steel tube, the weighing plate of both materials is stainless steel weighing pan; surface spray treatment

Product Features

Three-color alarm roller scale, roller electronic scale can be connected with computer and equipped with software weighing and computer perfect combination to ensure data storage is correct, saving a lot of management time, upper and lower limit setting, with calibration function; roller scale has large conveying capacity, speed Fast, light operation, can achieve the characteristics of multi-variety collinear flow distribution.

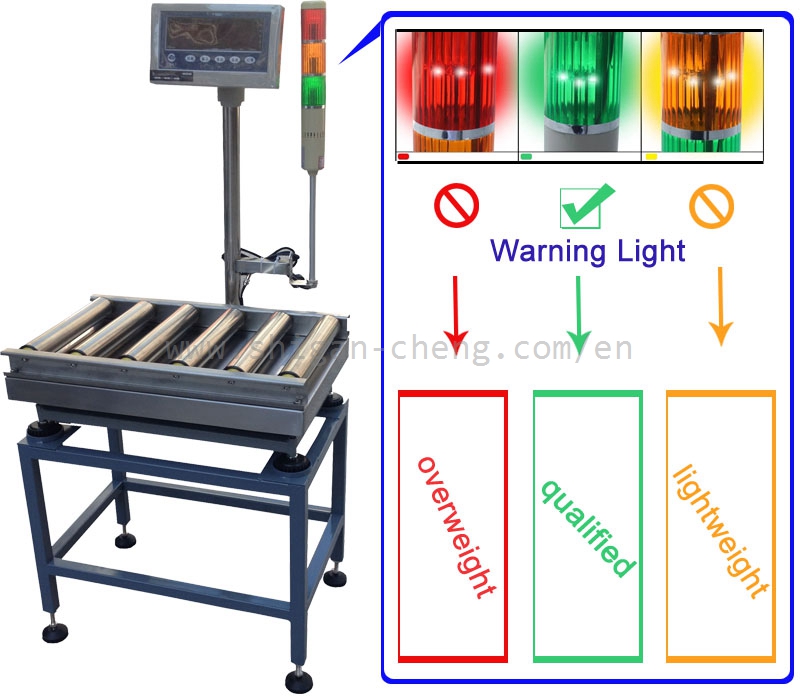

Three-color alarm roller scale function:

1. It has the function of checking the scale. (Can be set: HI, OK, LO three points)

2, with automatic correction, automatic zero tracking and other functions.

3, with dual overload protection.

4, the button has a touch design, using 3M adhesive tape is highly waterproof.

5. The outer casing is made of ABS plastic steel and has a long service life.

6. There is a clear low voltage display when there is insufficient power.

7, with a well-designed transport protection point function.

8, large LCD LCD display is clear and easy to read, with EL backlight function.

9. The electronic display head can adjust the appropriate display angle.

10. Optional: RS-232 and PRINTER card interface or RELAY function. Switching signal output, 4-20 mA output, 0-5V output, printer

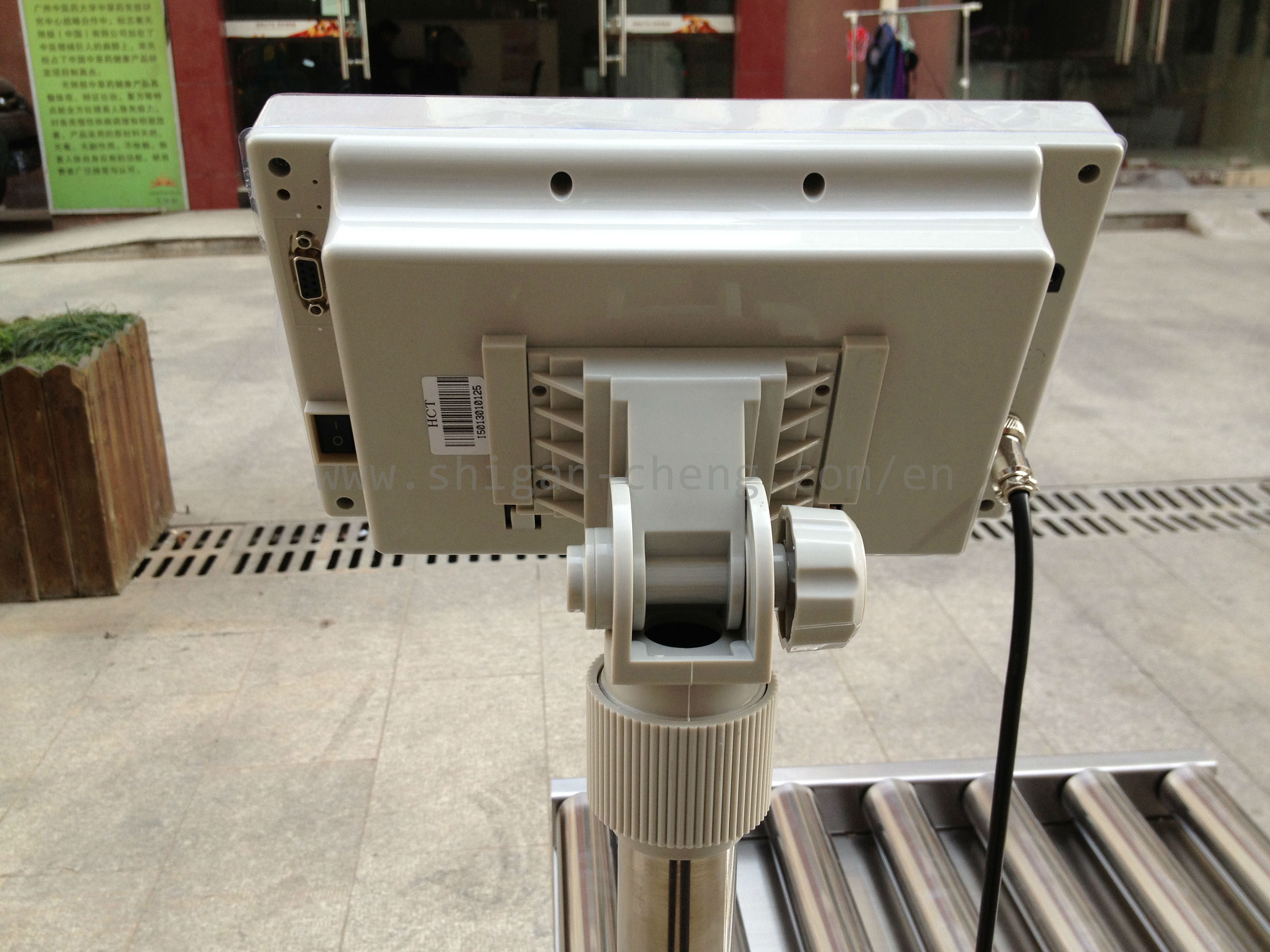

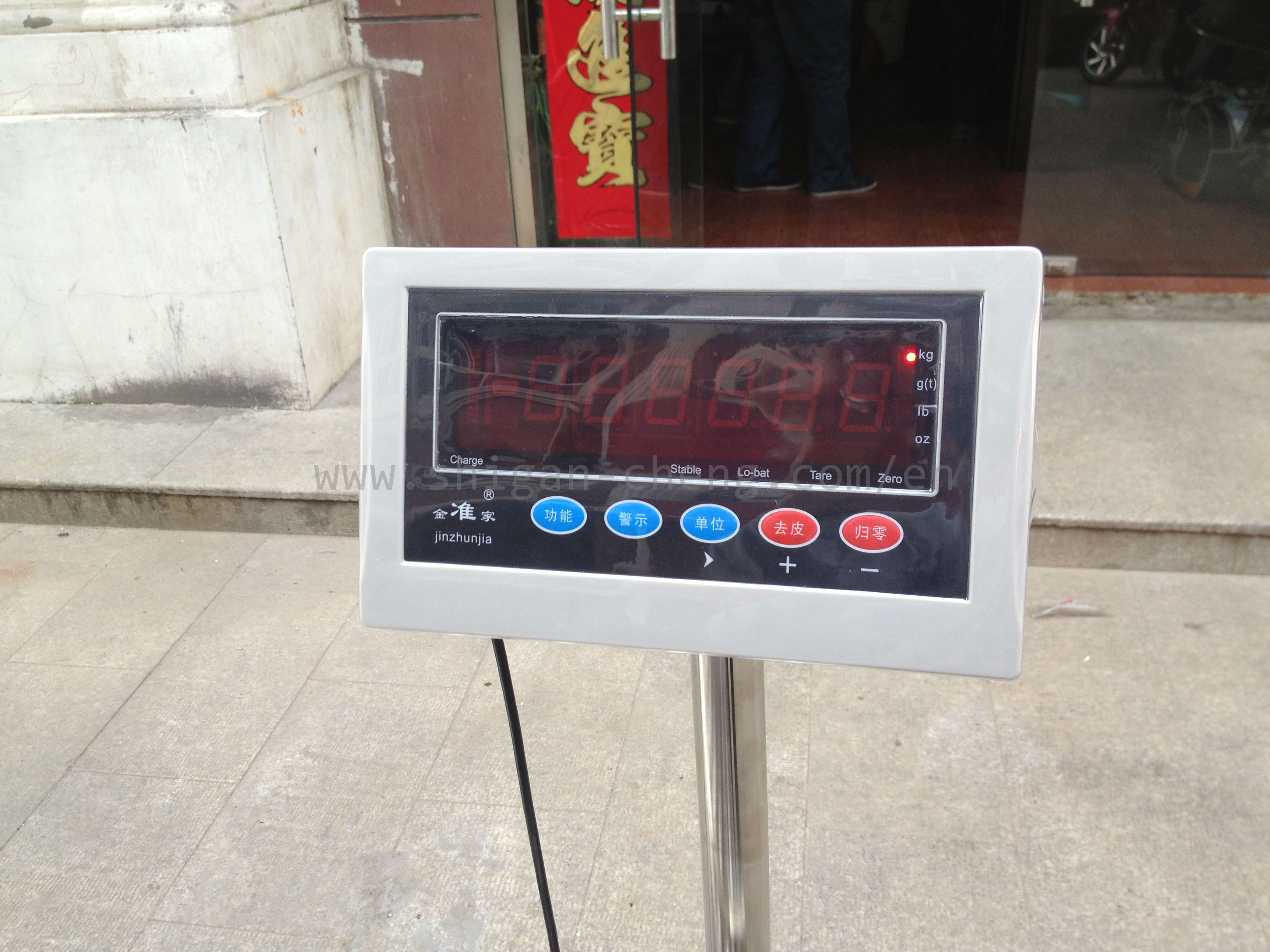

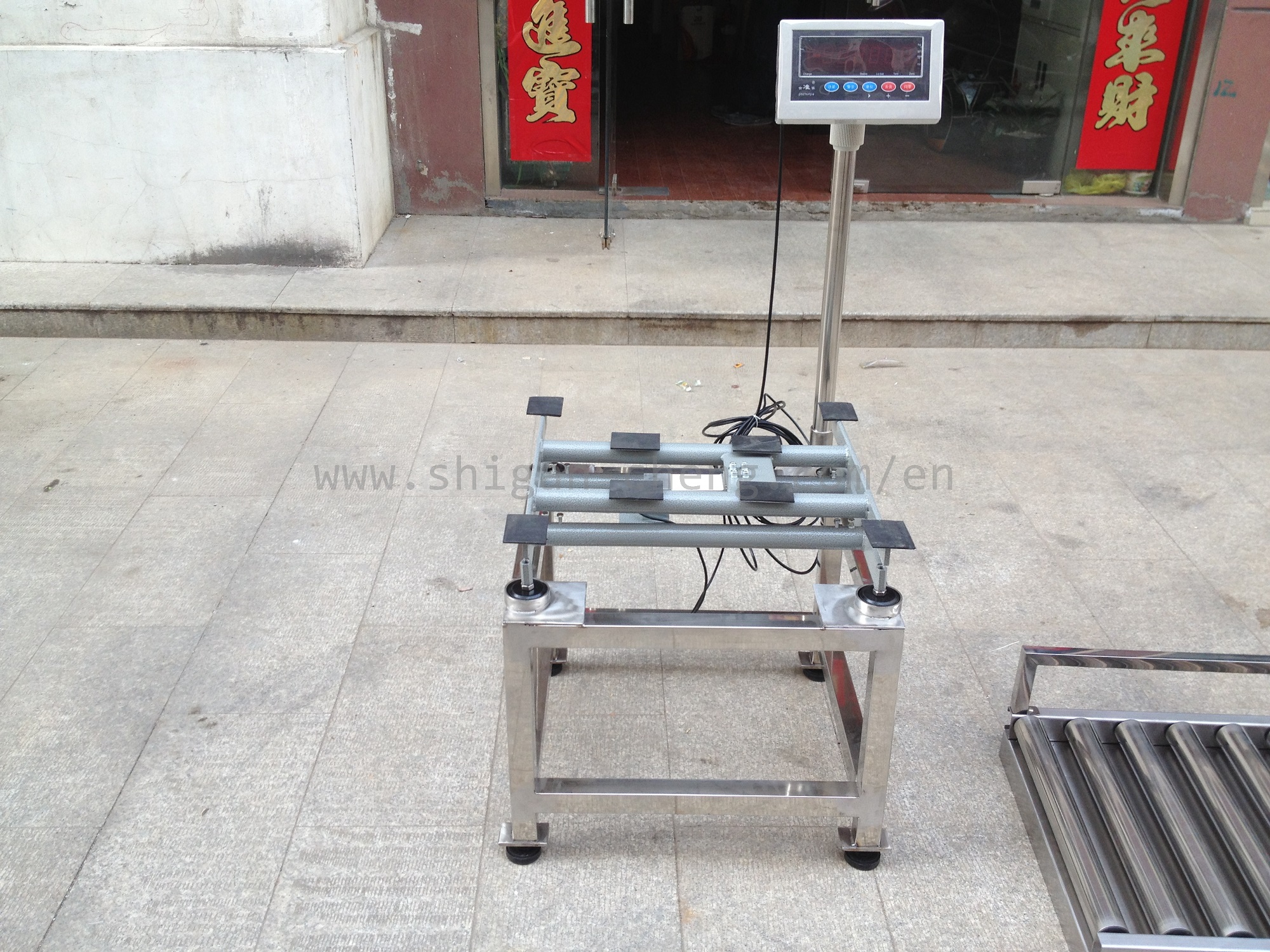

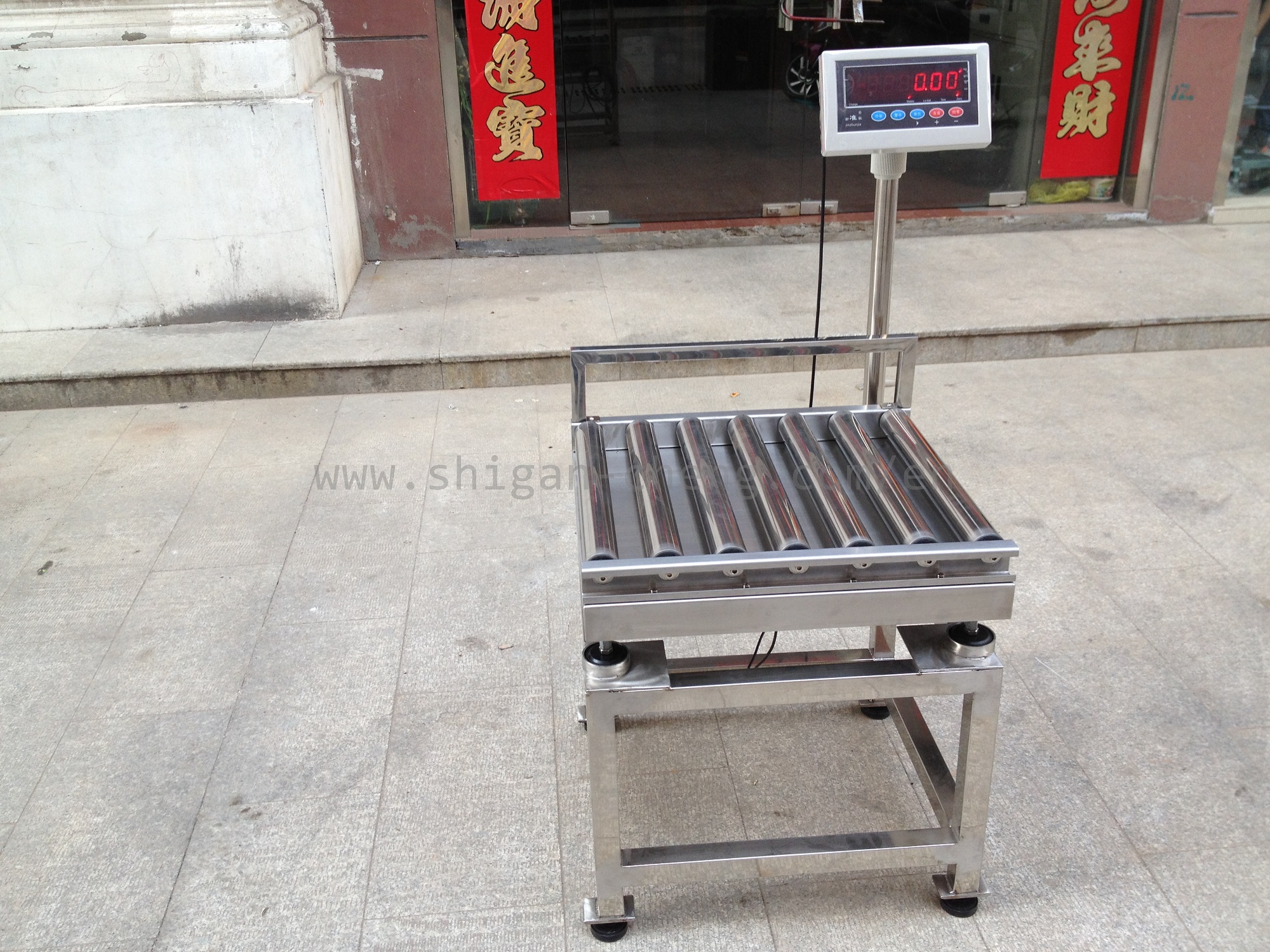

Three-color alarm roller scale picture:

Three-color alarm roller scale equipment features:

Dimensions: The width of the roller conveyor is specified by the customer and can be made according to the customer's requirements. The standard radius of the turning and rolling line is 300, 600, 900, 1200mm, etc. Other special specifications can also be used according to customer requirements. The diameter of the drum used for the straight drum is 38, 50, 60, 76, 89 mm and the like. The taper of the turning drum is designed according to the weight, dimensions, line speed, etc. of the conveying object.

Frame material: carbon steel spray, stainless steel, aluminum profiles.

Power mode: geared motor drive, electric drum drive and other forms.

Transmission mode: single sprocket, double sprocket, O-belt, plane friction transmission belt, timing belt, etc.

Speed control mode: frequency control, stepless speed change, etc.

Product Application

The three-color alarm roller scale and the roller electronic scale are widely used in various processing, assembly, packaging, storage and logistics lines.

Ship The Products

Three-color alarm roller scale delivery:

After-sales service commitment:

1. Service tenet: fast, decisive, accurate, thoughtful and thorough

2, service objectives: to win customer satisfaction with quality service quality

3. Service efficiency: If the equipment fails during the warranty period or outside the warranty period, the supplier can reach the site and start maintenance within 24 hours after receiving the notice.

4. Service principle: The warranty period of the product is one to twelve months. During the warranty period, the supplier will repair and replace the parts damaged by quality reasons for free. The parts outside the warranty period will be damaged. Equipment damage caused by human factors of the demand side, and the parts repaired or provided by the supplier are calculated at cost.

5. Outside the warranty period, our sales staff will return to investigate the user's use no less than three times a year.
