SG-450 automatic checkweigher, overweight and underweight detector

Product Video

Product Parameters

SG-450 automatic checkweigher parameters:

type:	SG-450
weighing scope:	0.05-20/30Kg
Restrictions of product:	L:550   W:450   H:3-400mm
Sharpness of Separation:	（±5/10g  Visionproduct)
Seale Mark:	1g
Belt speed:	0-40m/min
Highest speed:	40pcs/min
Belt Width:	450mm
Deadweight of Machine:	≈100Kg
Power Supply:	AC-110/220V±10%   50HZ
Power:	≈100w
Main Material:	（SU304 Stainless steel）

Product Features

SG-450 automatic checkweigher, overweight and underweight detector can detect whether the weight of the product is qualified, whether there is an empty package, and can automatically reject the unqualified products. The automatic checkweighing scale adopts dynamic weighing sensor and shockproof shock absorption technology to realize High precision, high speed weighing, continuous rejection, our automatic checkweigher is widely used in pharmaceutical, food, daily chemical and other industries.

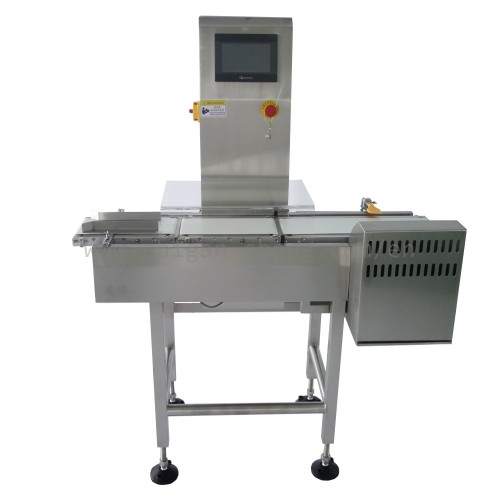

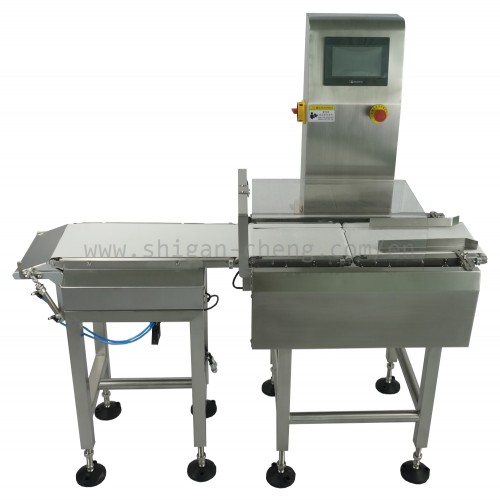

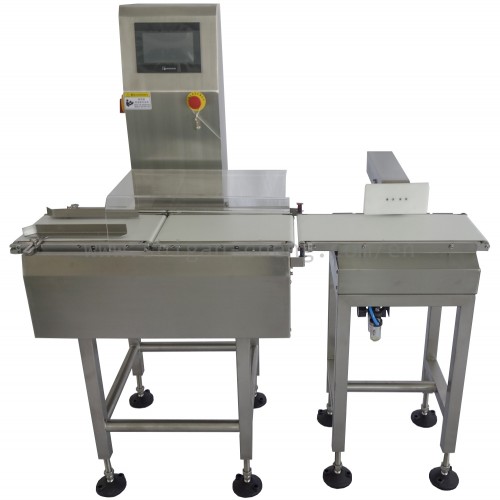

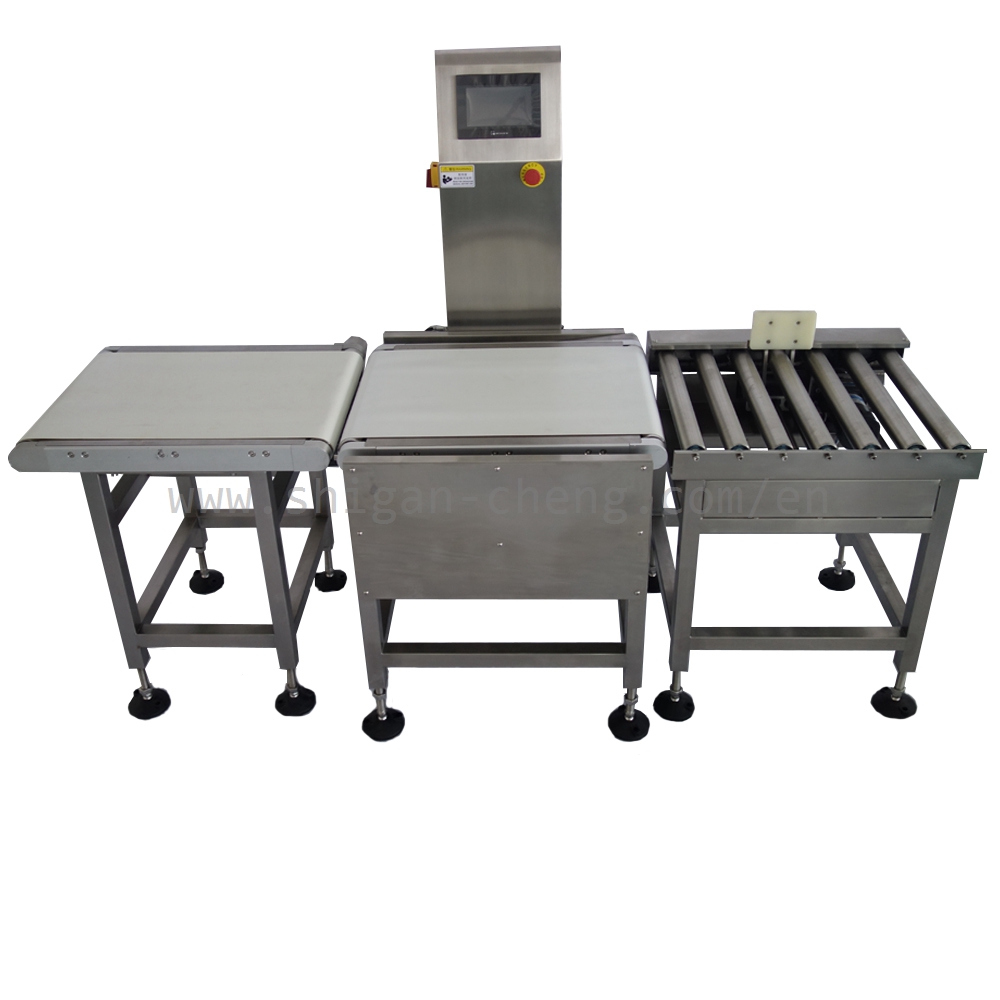

Checkweigher picture:

Automatic checkweigher features:

1. Large-size color LCD touch screen interface, easy to operate and intuitive display.

2. Support multi-language: Chinese, English, Spanish, Italian, Japanese, Korean, etc. (customer specified), default is Chinese and English.

3. It can store 200 kinds of product inspection data, which is convenient for users to call.

4. USB data storage interface, can transfer report data to PC for analysis and printing.

5. Parameter setting password protection, only management personnel operation.

6. Automatic zero tracking system to ensure reliable detection data.

7. Built-in temperature and noise compensation system to ensure system stability. Online printing function (customized by customer).

8. Data external communication interface, can be connected to other equipment in the production line (eg: labeling machine and inkjet printer) (customized by customer).

9. A variety of rejection devices: putter rejection, fall rejection. (Customer needs to be customized).

10. The mechanical structure is simple, easy to disassemble for cleaning and maintenance.

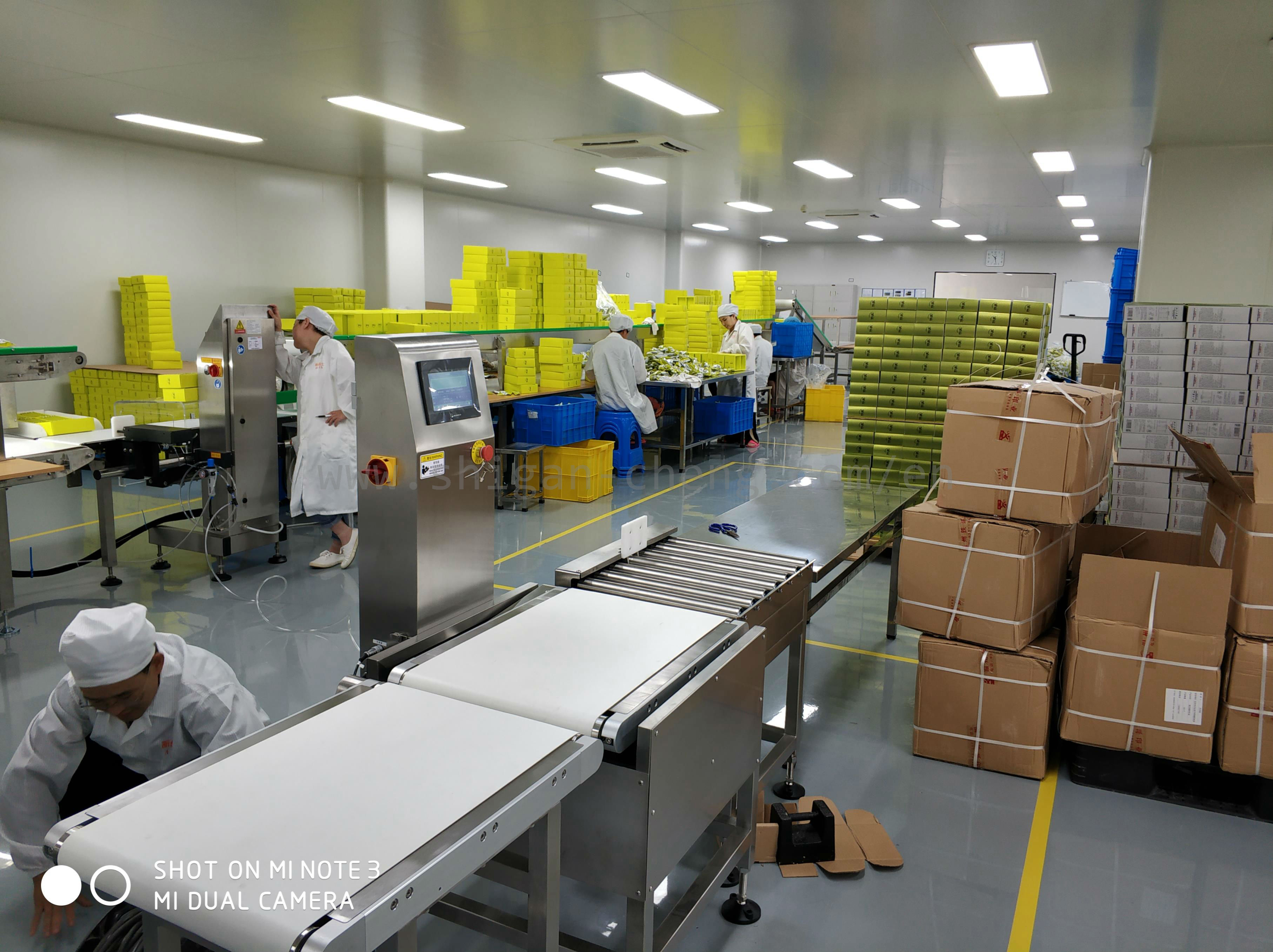

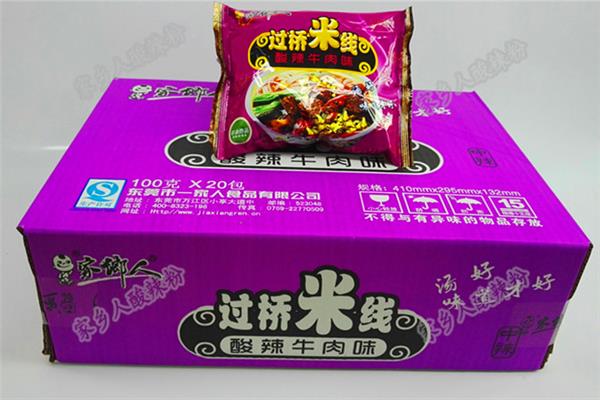

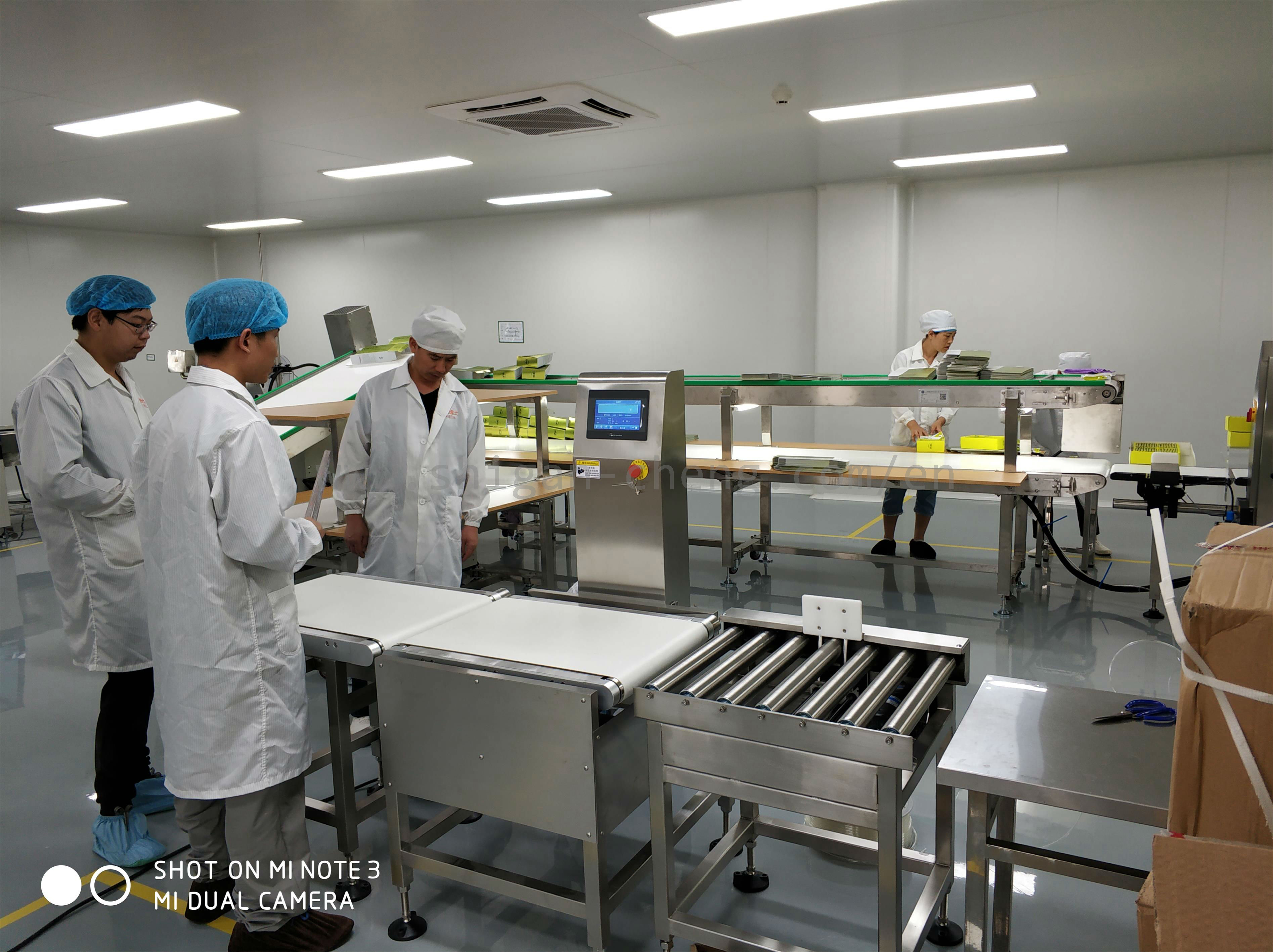

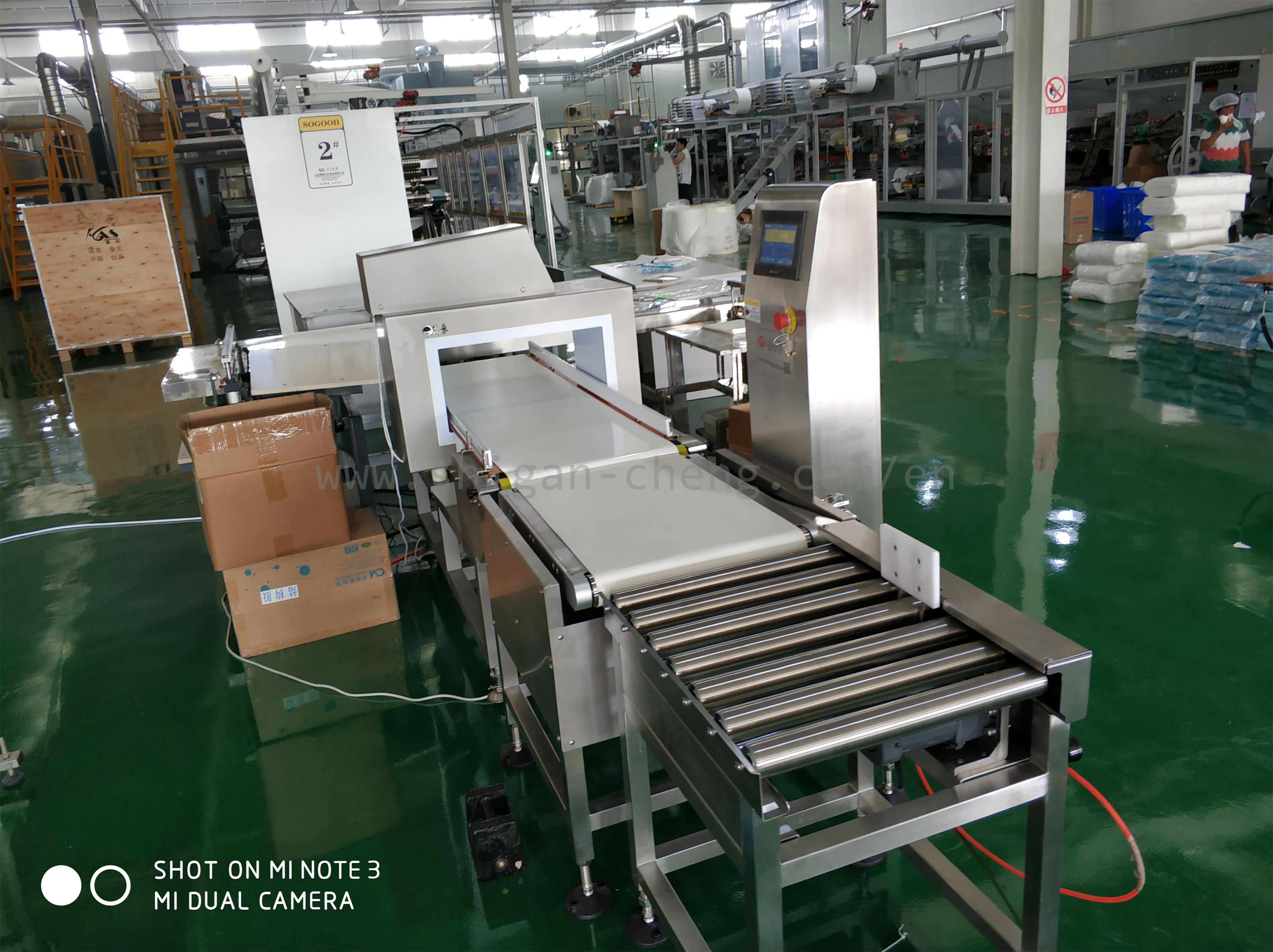

Product Application

Ship The Products

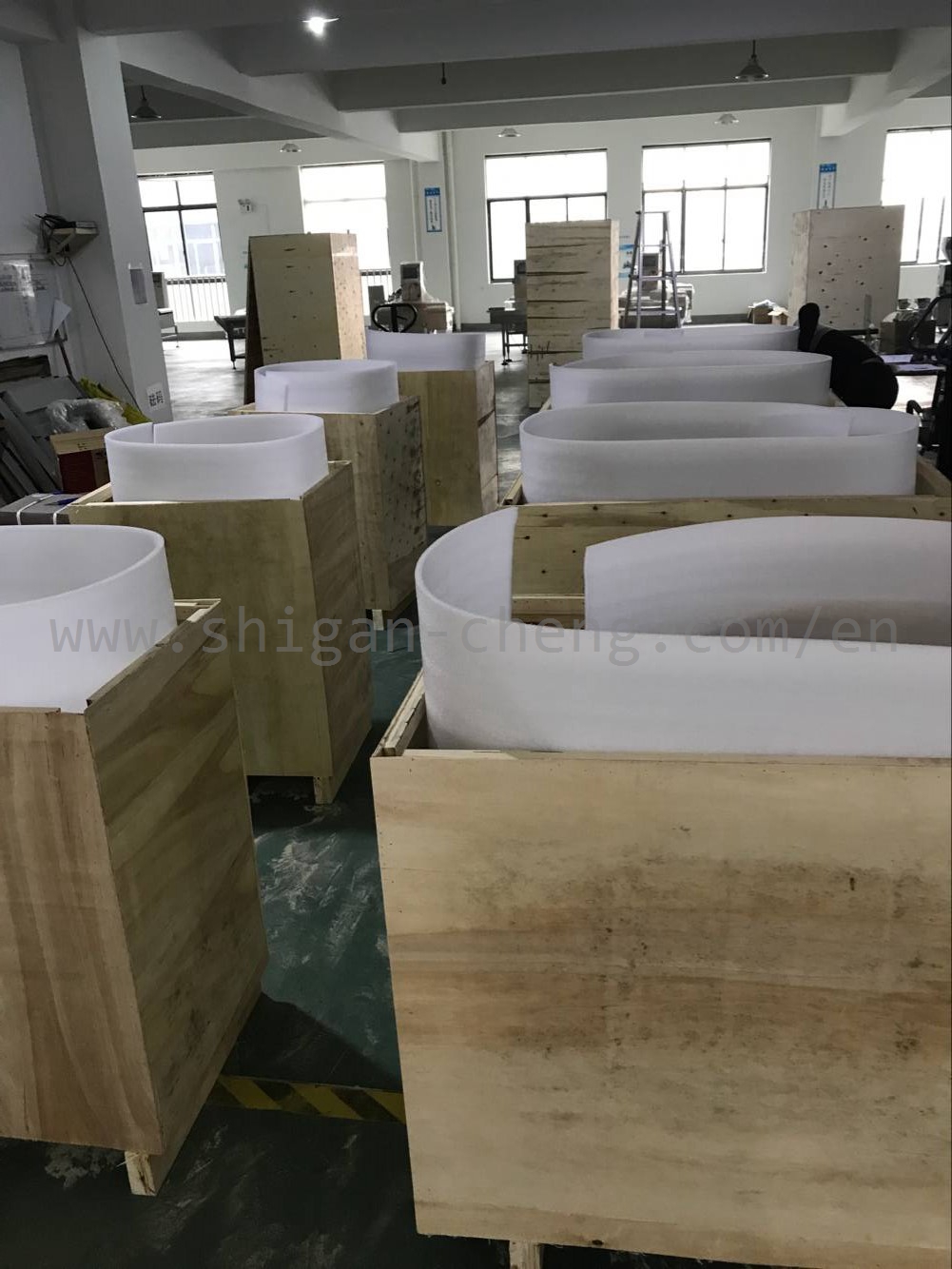

Automatic checkweigher delivery:

After sales service:

1. Service tenet: fast, decisive, accurate, thoughtful and thorough

2, service objectives: service quality wins customer satisfaction

3. Service efficiency: If the equipment fails during the warranty period or outside the warranty period, after receiving the notice, our company will arrange the maintenance personnel to provide maintenance service for the customer within 24 hours.

4. Service principle: The warranty period of the product is one year. During the warranty period, our company will repair the parts and components damaged by quality reasons for free. The parts and components damaged during the warranty period will only be charged for the cost, if it is due to human factors. The equipment damage caused by our company is repaired or supplied at the cost price.
