Checkweigher metal detector combo, SG-JS220 gold inspection machine

Product Video

Product Parameters

Checkweigher metal detector combo parameters:

Name：	Digital metal detector (size specifications can be customized according to requirements)
Model：	SG-JS220	specification：	4010
Detecting hole width：	220mm	Detecting hole height：	100-200mm
Body material：	Made of stainless steel (304)
Detection sensitivity：	In the empty state:              High 100mm: iron Fe ≥ φ0.8mm, stainless steel SUS ≥ φ1.2mm              High 120mm iron Fe≥φ1.0mm, stainless steel sus≥φ1.8mm              High 150mm iron Fe≥φ1.2mm, stainless steel sus≥φ2.0mm              High 200mm iron Fe≥φ1.5mm, stainless steel sus≥φ2.5mm
Effective detection of hole width：	220 mm
Effective detection of hole height：	100-200mm
Weighing range：	5-1500g
Weighing accuracy：	±0.2g (depending on the product)
Conveyor height：	750mm (up and down adjustable 50mm)
Conveying capacity：	10kg/time	Transfer direction：	From left to right
Protection level：	IP65
Display and operation：	LED LCD flat button input
Power requirement：	AC220V
Alarm mode：	Metal detected, alarm, belt stop
Dimensions：	About L2267XW589XH1500mm (final according to the design drawing)

Product Features

Checkweigher metal detector combo is an on-line testing equipment specially designed for automatic packaging line design. It can simultaneously achieve precise control of product weight and metal foreign object detection, and automatically remove unqualified and foreign-containing products from the production line; Space saving is the most effective solution for end detection and quality control of production lines.

Checkweigher metal detector combo design advantages:

1. Lightweight structure, small footprint, convenient connection with production line, high detection sensitivity and convenient operation; can achieve more quality control with maximum production line space.

2, advanced technology, the application of the latest multi-frequency detection technology, material effect automatic elimination technology, automatic balance technology and adaptive adjustment technology to bring the industry's simplest operation, the best environmental adaptability and stability.

3, all stainless steel shock-absorbing structure design and production, to ensure long-term stability and service life.

4. It can record the detection parameters suitable for 100 different products, avoiding the detection error caused by the artificial difference and avoiding the downtime of the replacement product.

5, low-power design and full-sealing design and the structure of the equipment to ensure the protective effect of the electronic control part of the protection effect, to achieve IP65 protection level, more than 15 years of service life.

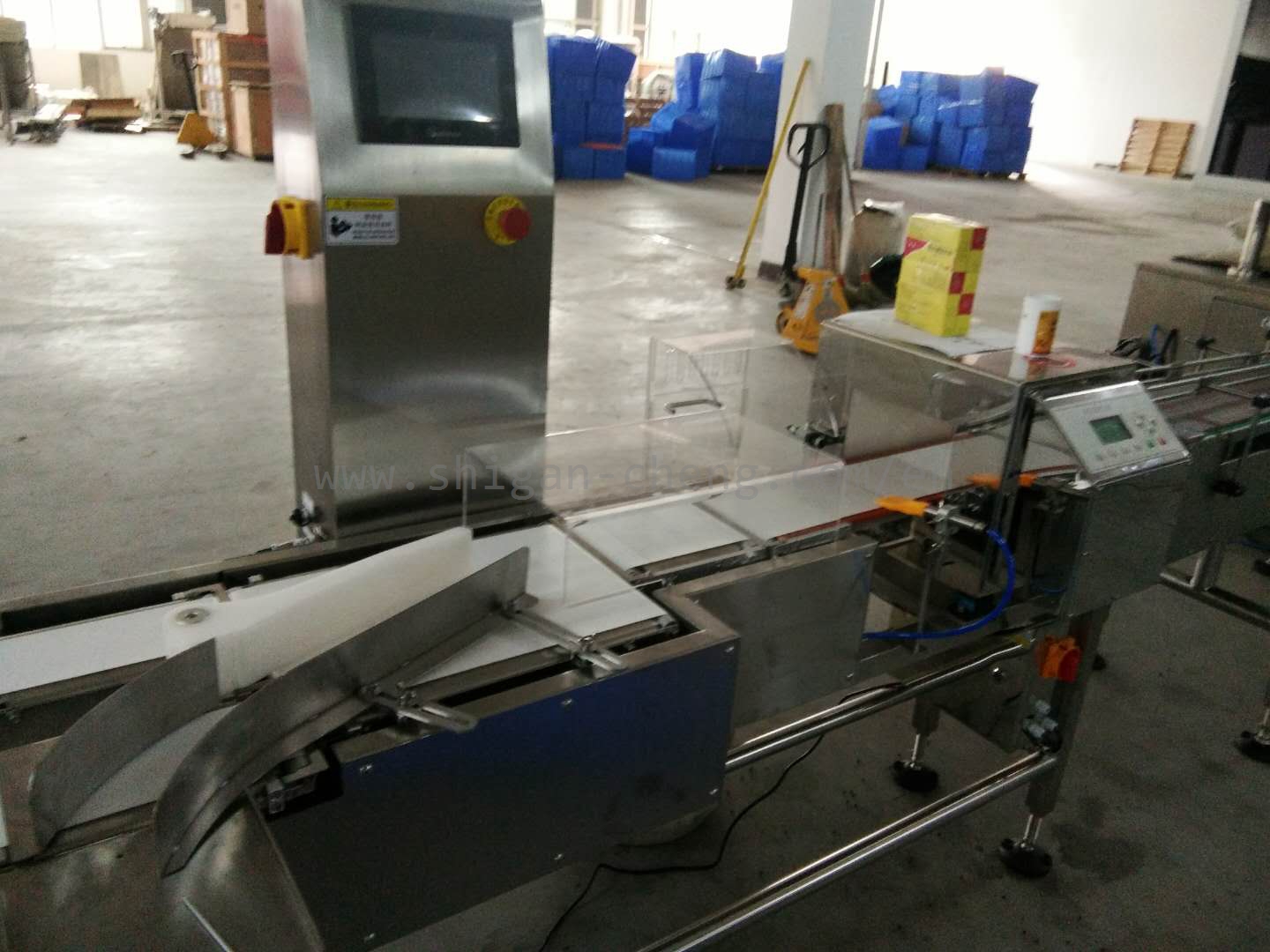

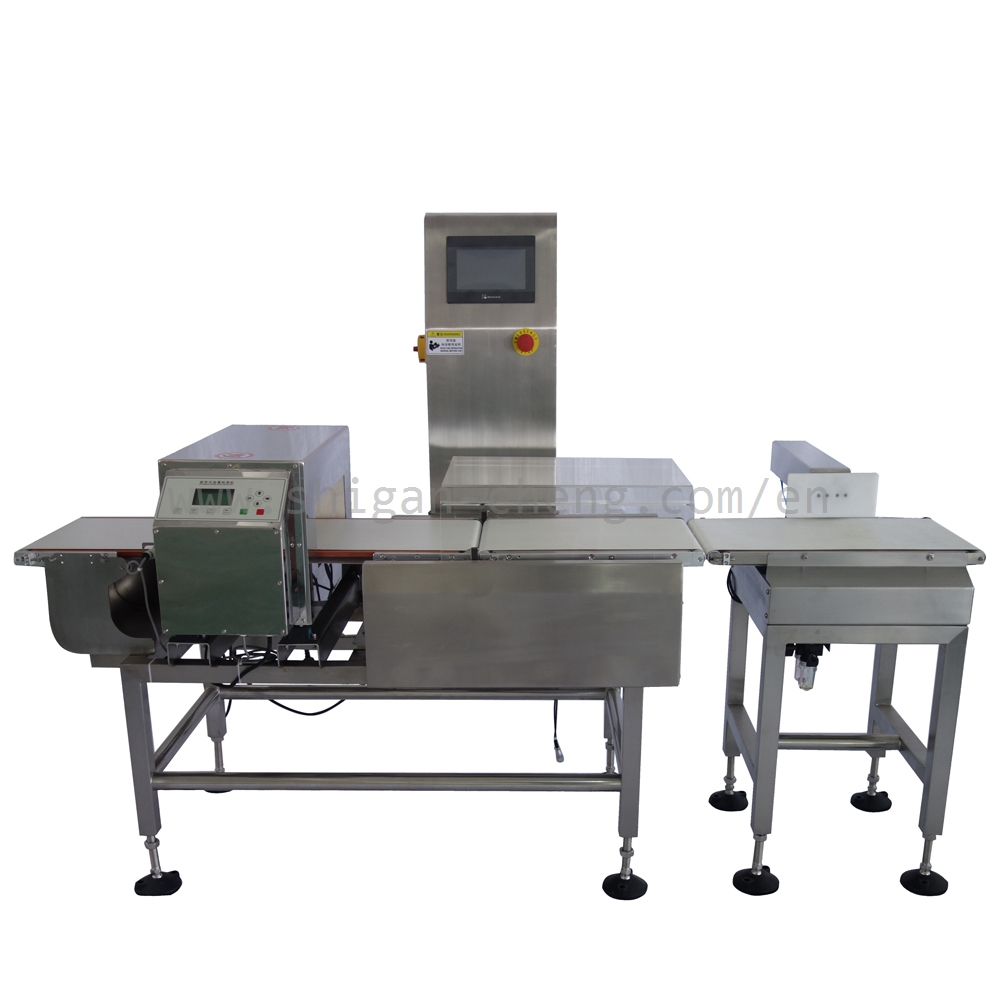

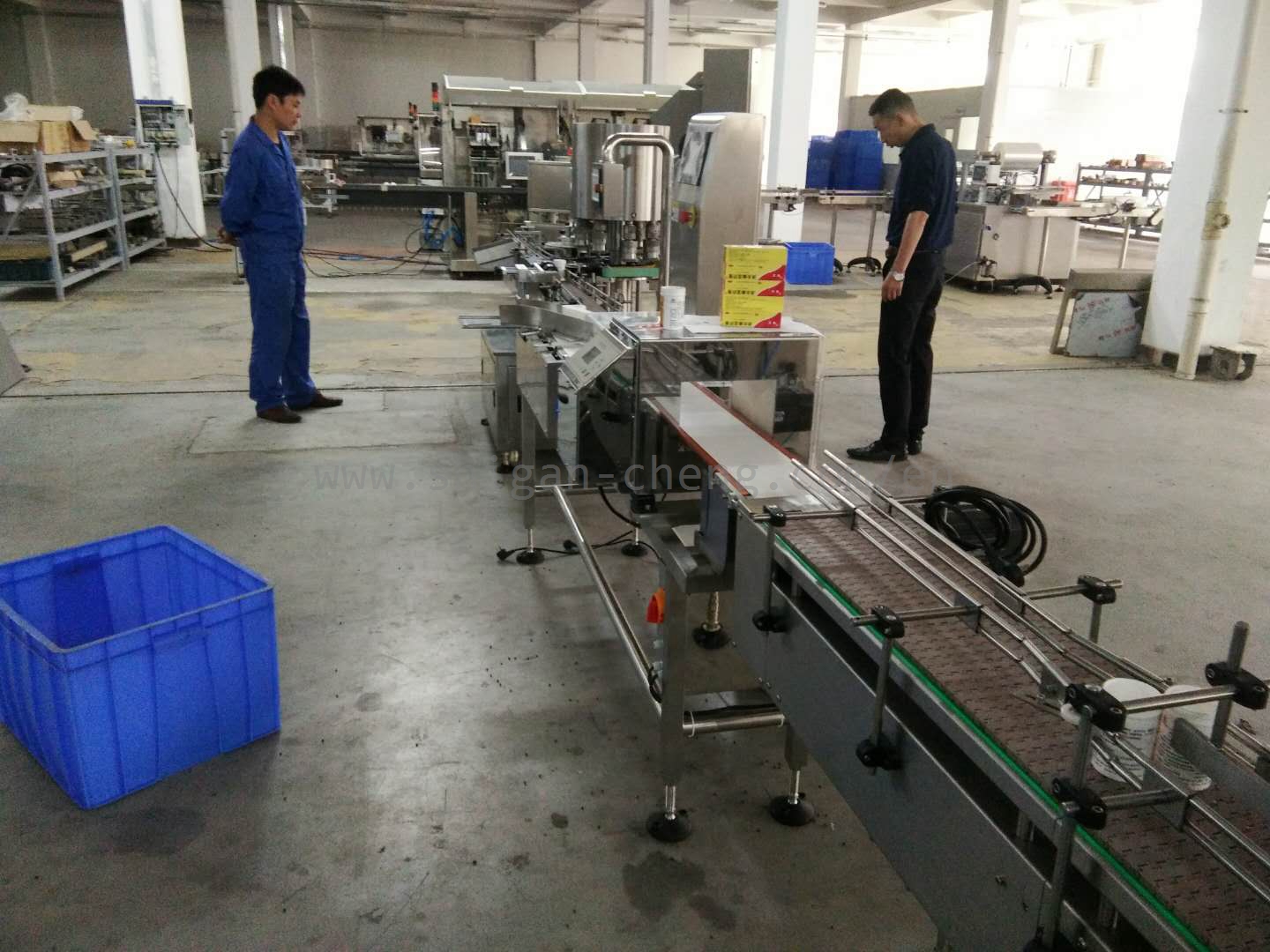

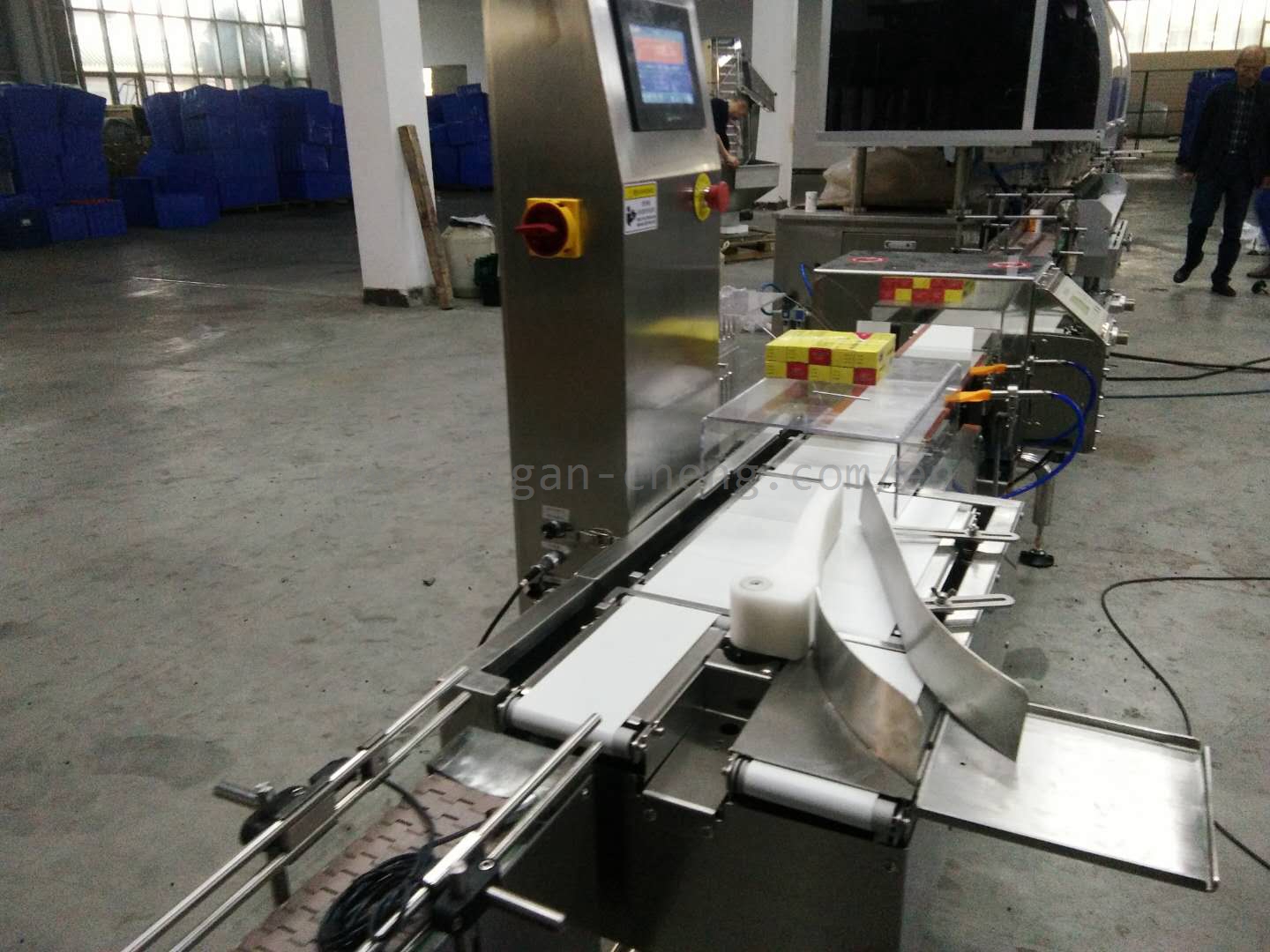

Checkweigher metal detector combo picture:

Product Application

Ship The Products

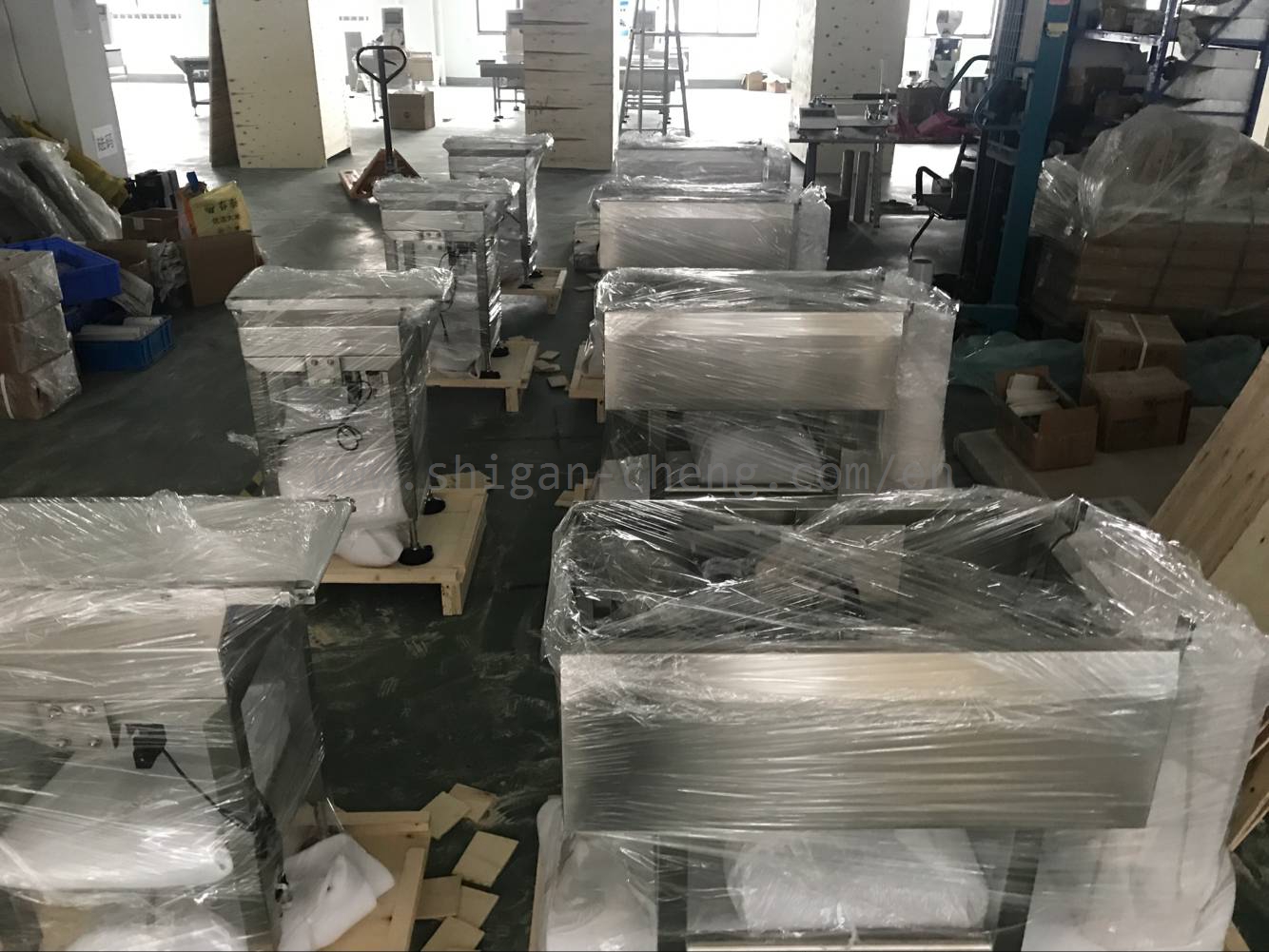

Checkweigher metal detector combo delivery:

After sales service:

1. Service tenet: decisive, accurate, thoughtful and thorough

2, service objectives: service quality wins customer satisfaction

3. Service efficiency: If the equipment fails during the warranty period or outside the warranty period, after receiving the notice, our company will arrange the maintenance personnel to provide maintenance service for the customer within 24 hours.

4. Service principle: The warranty period of the product is one year. During the warranty period, our company will repair the parts and components damaged by quality reasons for free. The parts and components damaged during the warranty period will only be charged for the cost, if it is due to human factors. The equipment damage caused by our company is repaired or supplied at the cost price.
